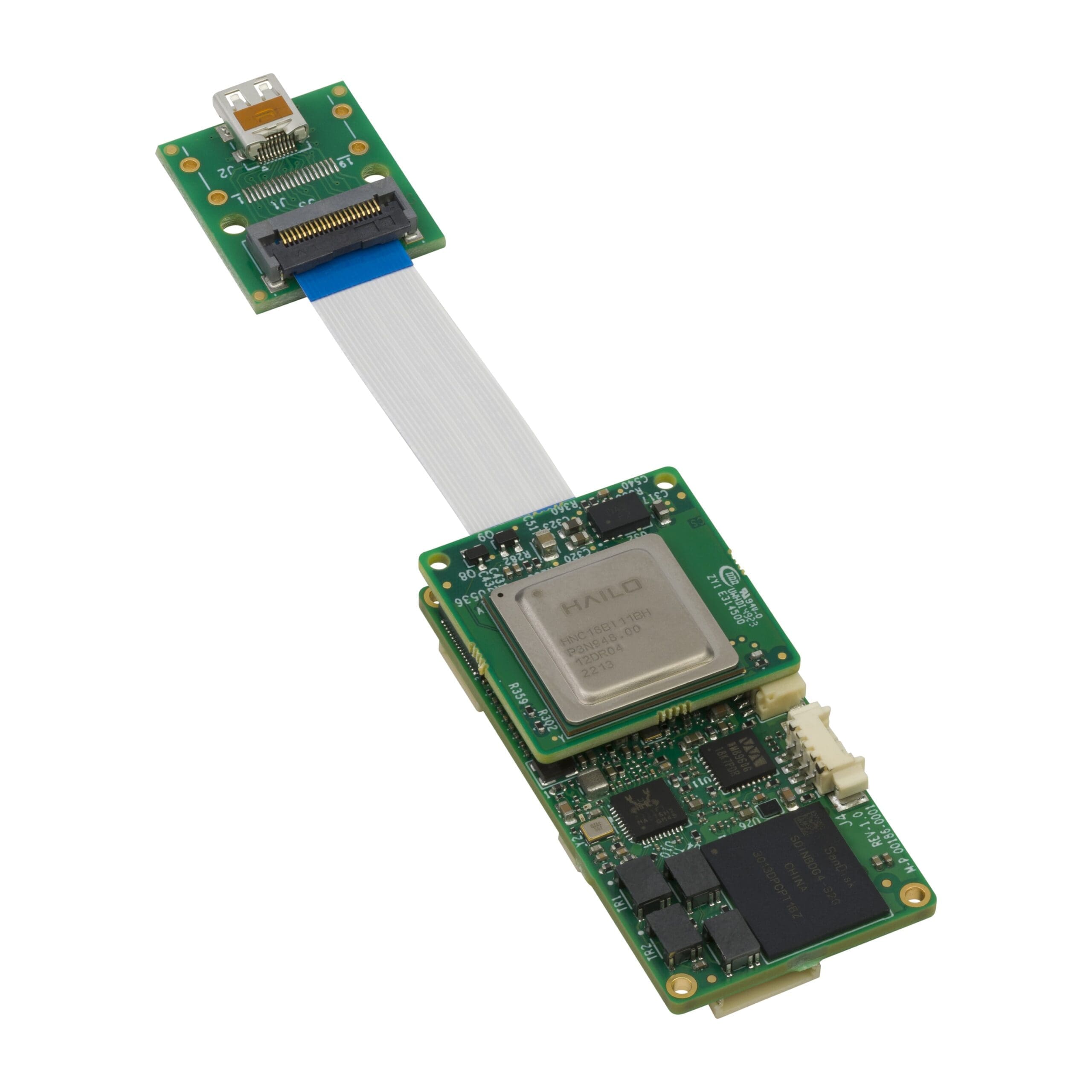

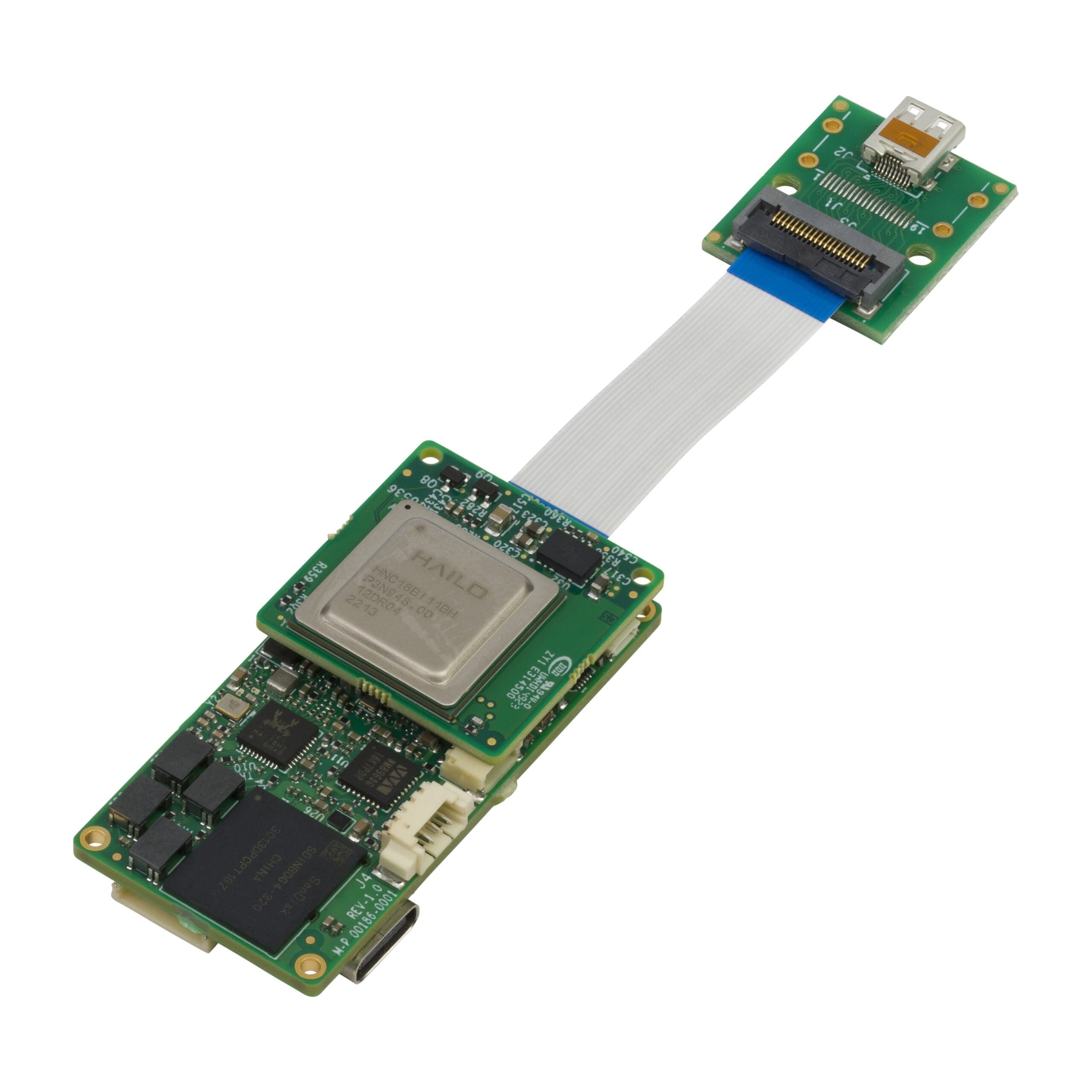

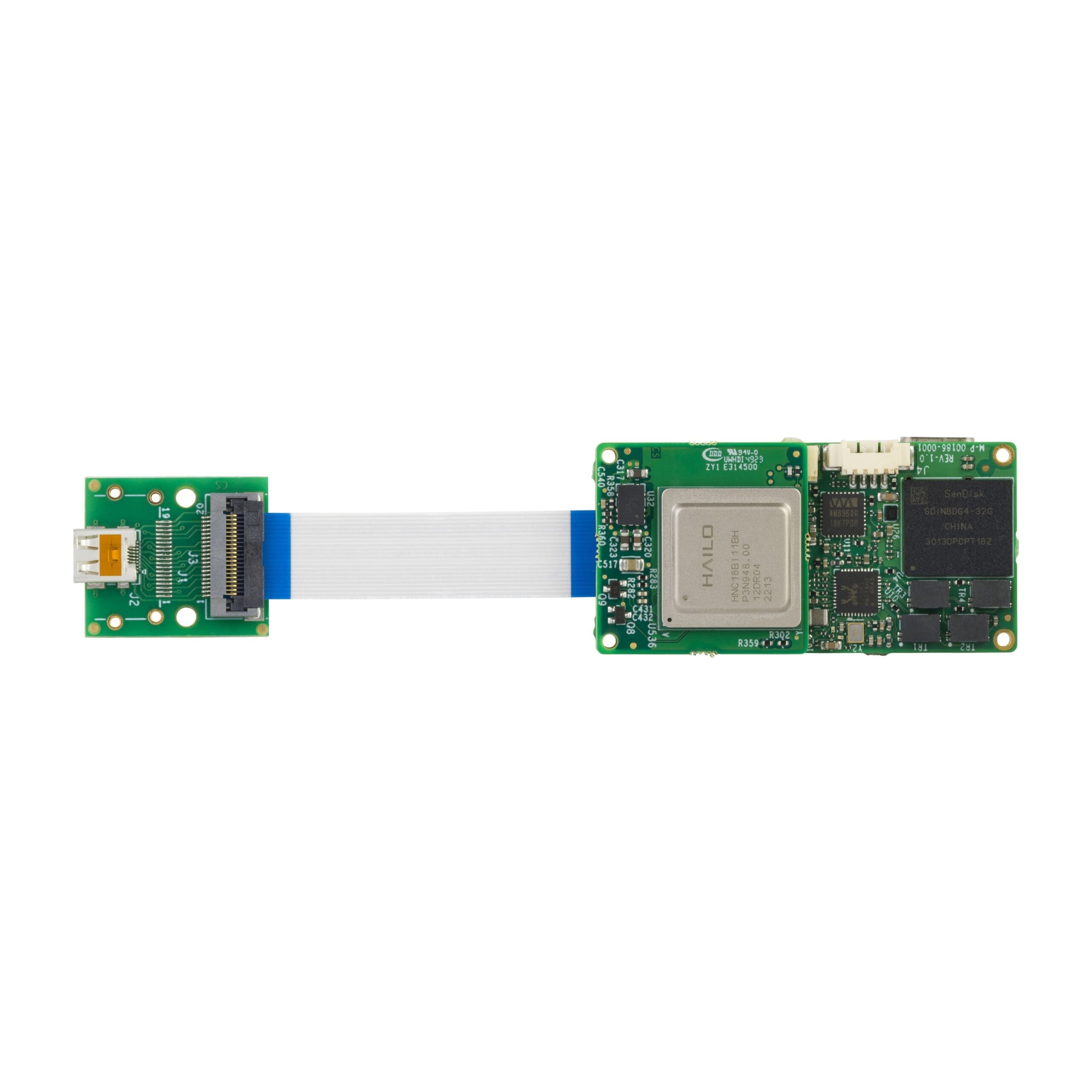

ANT-1776UAV is an advanced UAV or Drone-oriented encoder with H.264/5 codec and 3 x input types HDMI, USB & CVBS, you can choose to use 1, 2 or 3 inputs at a time. The product comes with a durable, flexible ribbon HDMI connector.
The main encoder board can handle multiple streams simultaneously (up to 8MUX) and supports end-to-end 100msec ultra-low-latency streaming over networks using either another hardware ANT-1776 product, or the dedicated software based player (provided) for Windows, Linux and Android.
The ANT-1776UAV supports Unicast, Multicast, Broadcast in UDP, RTP, RTSP with Forward Error Correction (FEC) support. Capabilities include video and audio capture, encoding, decoding, transcoding and display, and video raw-data pre-processing.
With the option to add an AI acceleration module, which includes/adds powerful Hailo-8, 26 TOPS AI Accelerator enabling high AI accuracy detection & tracking as well as hosting customers AI processes. Yolo5 is included as standard, but customisation is also possible.
This unit is designed to function at extreme temperatures, it has been tested to -40C + 85C (Tested to MIL-STD-810G Standard) which is particularly useful in subsea, military, defence and unmanned vehicle markets.
Designed to be integrated into an enclosure as it is a base board product, example applications for this type of product would be UAV, unmanned vehicles & drones etc.
USB-C Camera Input Types Supported for ANT-1776X Range
Supported USB-C Camera Formats:
• Y16 (converted to 8-bit for streaming)
• YUYV 4:2:2
• NV12 (YUV 4:2:0)
| Firmware Feature | Description |
| Selective Recording & Recording Segmentation | Automatically split recorded video into manageable file segments, making it quick and easy to locate footage by date, time or event without searching through large continuous recordings. |
| Dynamic Encoding & Adaptive Bit Rate | Configure a predefined profile table that allows the encoder to automatically adjust video resolution and bitrate in real time based on radio signal strength (RSSI). Working alongside compatible radios, this ensures the most stable video possible as network conditions change. Video settings can also be adjusted manually on the fly without interrupting the stream. |
| ONVIF Discovery | Enables automatic ONVIF discovery and integration with leading Video Management Systems (VMS), simplifying installation and deployment within security and surveillance environments. |
| AES Encrypted Recording | Securely record video using AES encryption, protecting sensitive footage from unauthorised access. |
| Text & Graphics Overlay | Overlay custom text, timestamps, mission data, graphics or other information onto live or recorded video. |
| NTP Time Synchronisation | Synchronise system time across multiple devices using Network Time Protocol (NTP). |
| Raw Video Recording via USB-C | Capture uncompressed RAW video directly to USB-C storage for AI training and post-processing. |
| IP Transcoding | Decode incoming IP streams and re-encode them into RTSP for interoperability. |
| Local HDMI Decode Output | Decode IP video streams locally and output directly via HDMI. |
| 00.82 Encoding & Transcoding | Encode into the 00.82 protocol or transcode existing 00.82 streams into H.264/H.265 RTSP. |
| WebRTC | Ultra-low latency browser-based video streaming without plugins. |
| AI Selective Streaming (Hailo-8 only) | AI-powered object-focused streaming to reduce bandwidth while maintaining situational awareness. |
| Multi-Stream Video Processing | Simultaneously encode, decode and stream multiple video channels. |
| Low Latency Streaming | Optimised H.264/H.265 pipeline for real-time video transmission. |
| Forward Error Correction (FEC) | Improves resilience over unreliable wireless and RF links. |
| Metadata & Telemetry Support | Supports transport of GPS, telemetry, sensor data and other metadata alongside video. |
| Local Recording & Playback | Simultaneously stream and locally record video, audio and metadata. |
| Multiple Video Input Support | Supports HDMI, HD-SDI, MIPI, LVDS, CVBS and USB camera inputs depending on model. |
Learn more about the key features
Learn more about the key features
Antrica products are compatible with a range of products
Love your Antrica product? then why not leave a review
Sorry, no reviews match your current selections
|
System |
Mode |
Encoder or Decoder |
|
System Standards |
RTSP, MPEG-TS, Unicast, Multicast, RTP |
|
|
System Latency |
<150mS (system dependant) apx 100ms with Neptune Player or App |
|
|
Video |
Compression |
H.264 or H.265 |
|
Profile |
Baseline |
|
|
Frame Rate |
1-60 fps |
|
|
Bit Rate |
10Kbps to 20Mbps |
|
|
Mode |
GOP |
|
|
Bit Rate Control |
CBR, VBR |
|
|
Min Resolution |
320 x 240 |
|
|
Max Resolution |
1920 x 1080 P60 |
|
|
Number of Streams |
Up to8 x MUX per Board |
|
|
Inputs |
Any2InputsofHDMI orCVBS+1xUSBInput |
|
|
Input Combinations |
Any 3 Inputs |
|
|
Outputs |
Micro HDMI Output (decoder mode only) |
|
|
Output Combinations |
IP (encoder mode) / HDMI (decoder mode) |
|
|
On Screen Display |
English Only |
|
|
Audio |
Mode |
|
|
Compression |
G.711, G.726, MP2, MP3, OPUS |
|
|
Sample Rate |
8kbps, 44.1kbps, 48kbps CODEC dependent |
|
|
Bit Rate |
CODEC dependent |
|
|
Streaming |
TBC |
|
|
Inputs |
1x onboard MEMS or external microphone |
|
|
Outputs |
1x line output |
|
|
Network |
Interface |
100-1000 Ethernet RJ45 |
|
Protocols |
IPv4/v6, TCP, UDP, IGMP(Multicast),HTTP,RTSP,DNS |
|
|
Security |
None |
|
|
Configuration |
SDK, WEB |
|
|
Data |
Type |
UART |
|
Interface |
Dual UART |
|
|
Protocol |
Clear |
|
|
Alarm |
n/a |
|
|
Sensor |
n/a |
|
|
Event |
Sources |
n/a |
|
Actions |
n/a |
|
|
Power |
Supply |
5v ±0.1v DC (<5-12W) |
|
Adapter input volts |
N/A |
|
|
Adapter Output Voltage |
N/A |
|
|
Consumption |
Less than 4w with 2 x HD-SDI @ 1080P30, recording & streaming |
|
|
Recording |
Edge Storage |
6GB LPDD4 32GB EMMC |
|
Temperature |
Operating Range |
-40C + 85C (Tested to MIL-STD-810G Standard) |
|
Physical |
Dimensions |
25.4 x 50.8 mm |
|
Weight |
11g Main Board Only – 15g with HDMI Cable attached |
|
|
Housing |
PCB Only |
|
|
General |
Certifications |
RoHS |
|
Software |
IP Finder + Player (video decode and display) |
|
|
Warranty |
12 Months |
|
|
Remote |
N/A |
|
|
Reset |
Web interface or IP finder |
|
|
Control & Set Up |
Set Up |
Web interface or API |
|
Control |
Web interface or API |
|
|
Upgrade |
Firmware Upgrade via webpage or IP finder tool |
|
|
In the Box |
Contents |
PCB with HDMI Cable |
|
Power Cable/adapter |
Cables available as option, first set required as reference |
