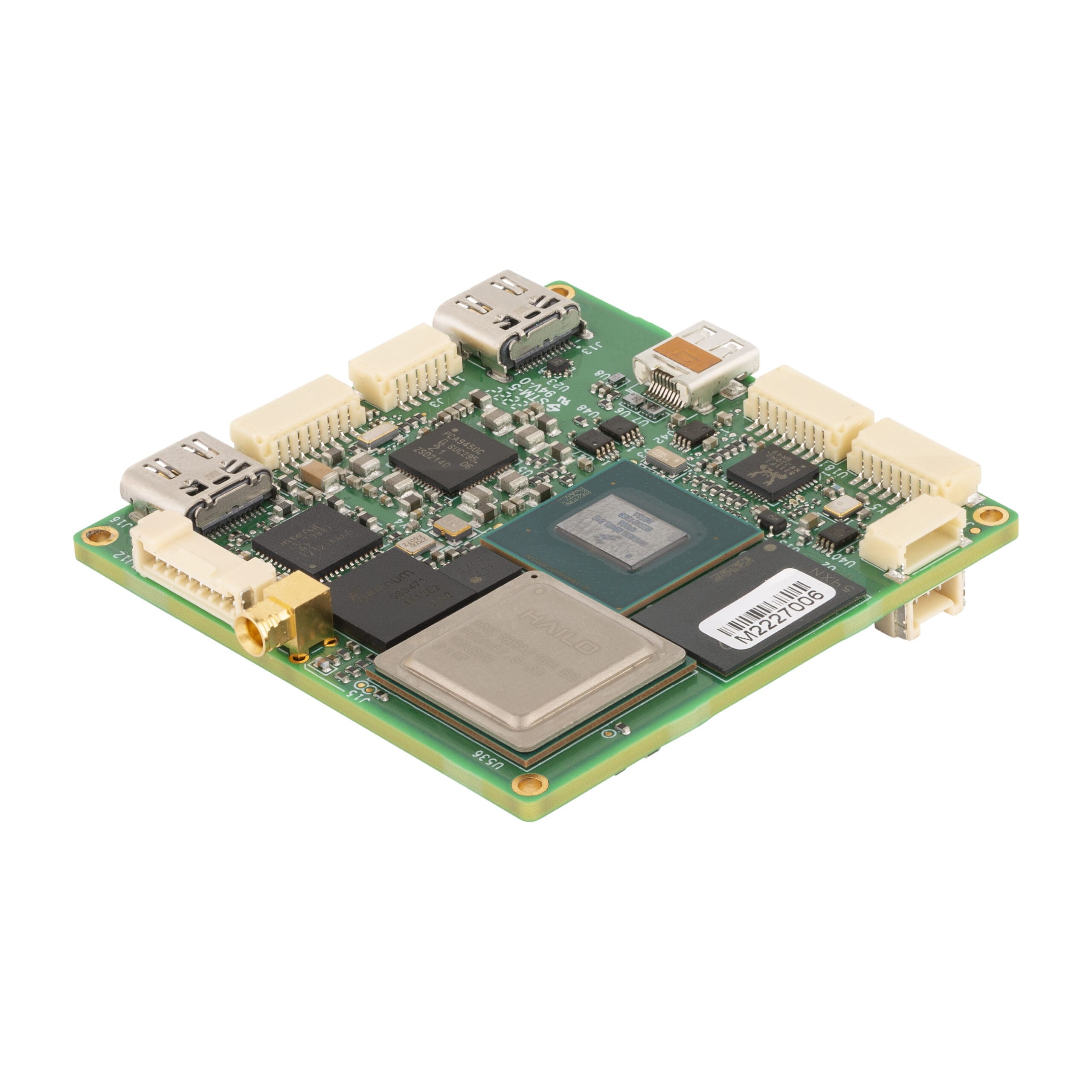

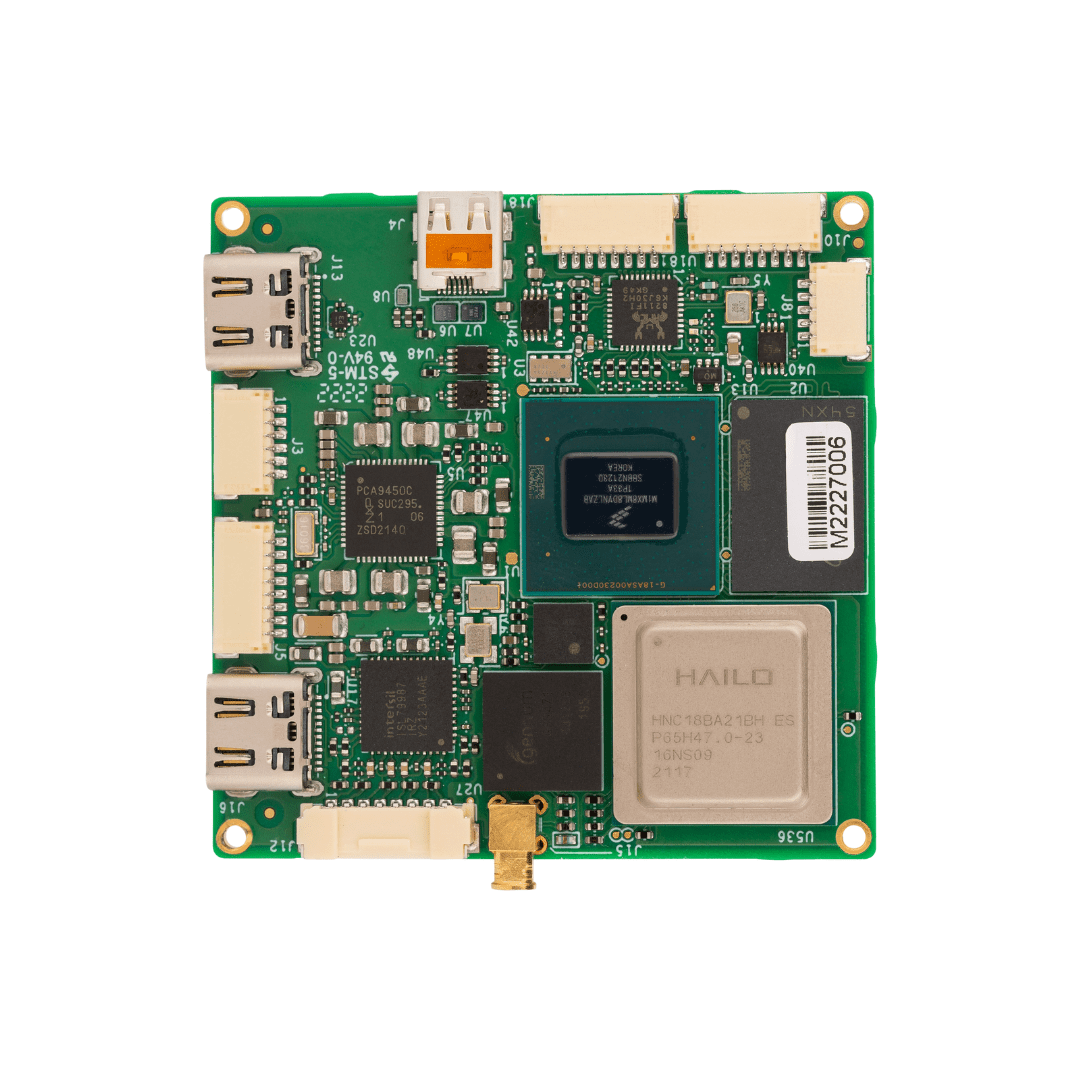

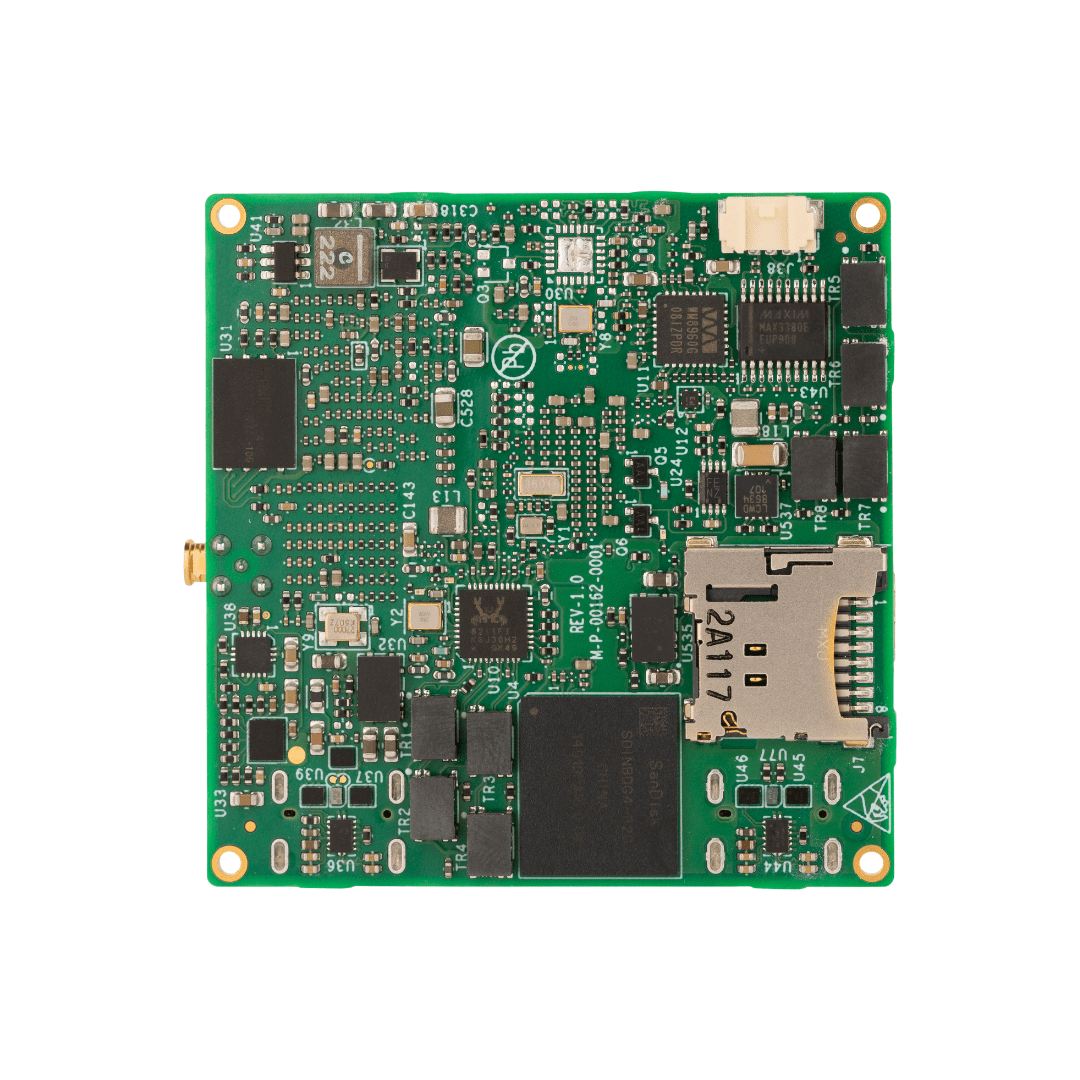

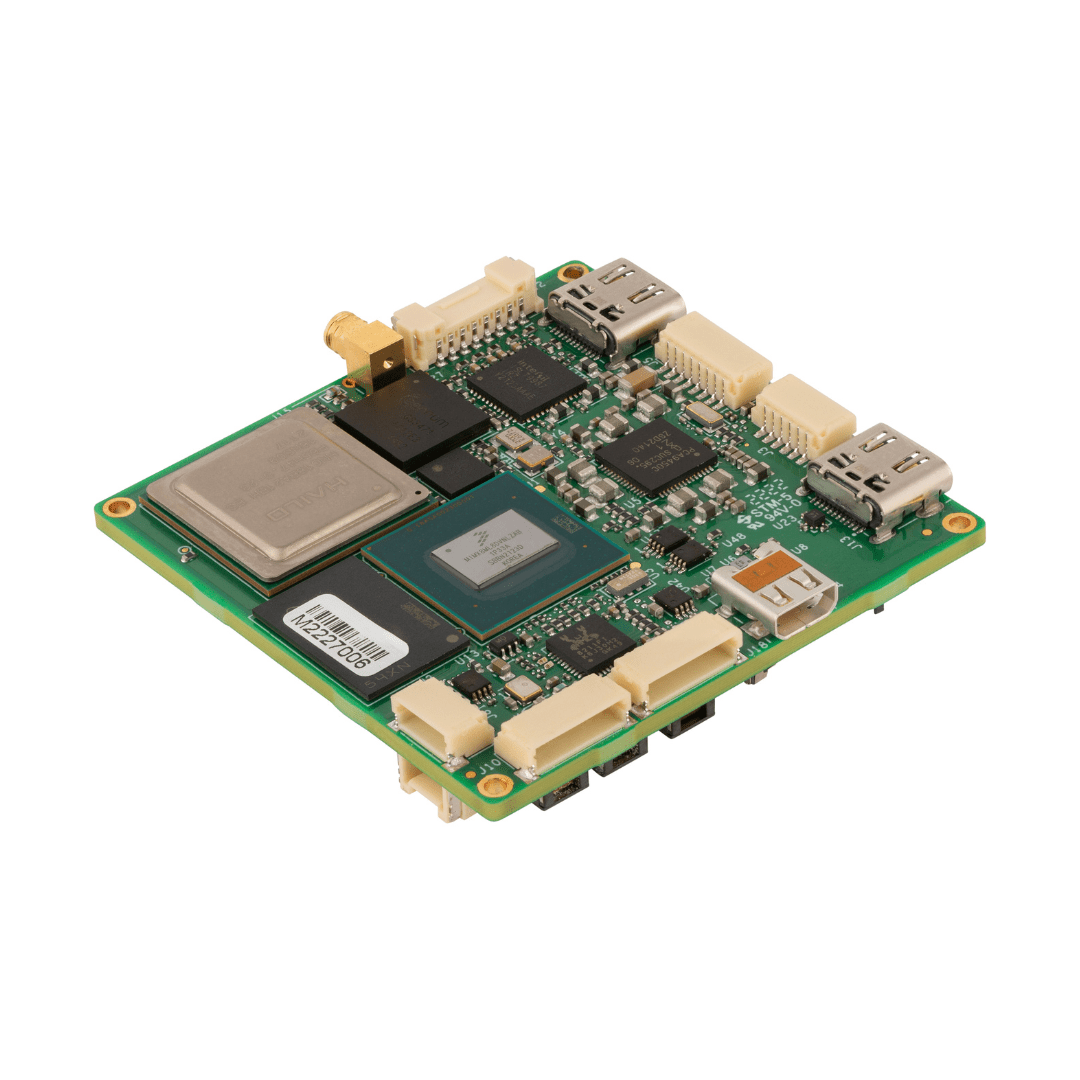

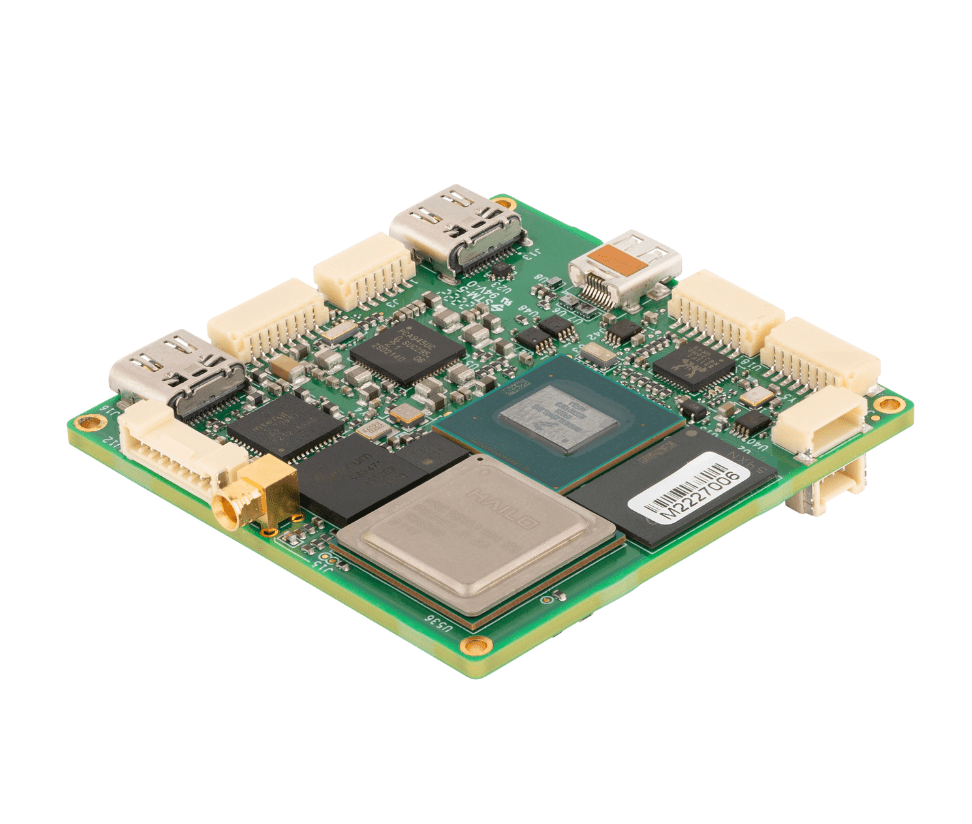

The ANT-1776AI is an advanced, multi-stream H.264/5 miniature AI video encoder featuring an integrated Hailo-8 AI accelerator. This onboard processing power enables efficient AI capabilities, including detection, classification, tracking, and other custom AI workloads. It supports 4× CVBS (PAL/NTSC), 1× HD-SDI 1080p60, and 2× USB 3.0 (UVC) inputs, all enhanced by Hailo-8 AI performance.
The ANT-1776AI has a compact form factor and low power consumption for extended surveillance and tactical operations. Ultra-low latency enables streaming over wired and wireless networks with Forward Error Correction (FEC) support. Capabilities include video, audio, data capture, encoding, decoding, transcoding and display, as well as video pre-processing.
Learn more about the key features
Learn more about the key features
Antrica products are compatible with a range of products
Love your Antrica product? then why not leave a review
Sorry, no reviews match your current selections
|
System |
Mode |
Encoder or Decoder |
|
System Standards |
RTSP, MPEG-TS, Unicast, Multicast, RTP, RTMP |
|
|
System Latency |
<150mS (system dependant) apx 100ms with Neptune Player or App |
|
|
Video |
Compression |
H.264, MJPEG or H.265 |
|
Profile |
Baseline |
|
|
Frame Rate |
1-60 fps |
|
|
Bit Rate |
10Kbps to 20Mbps |
|
|
Mode |
GOP |
|
|
Bit Rate Control |
CBR, VBR |
|
|
Min Resolution |
320 x 240 |
|
|
Max Resolution |
1920 x 1080 P60 |
|
|
Number of Streams |
Primary 1 x H.265/4 / Secondary 1 x H.265/4 |
|
|
Inputs |
2xLVDSor1xLVDS+1xCVBSor1xCVBS+2xUSB+1xLVDSor1xLVDS+Cameralink+USBandSPI |
|
|
Input Combinations |
2/3/4 (see above) |
|
|
Outputs |
micro HDMI Output (decoder mode only) |
|
|
Output Combinations |
IP (encoder mode) / HDMI (decoder mode) |
|
|
On Screen Display |
English |
|
|
Audio |
Mode |
?? |
|
Compression |
G.711, G.726, MP2, MP3, OPUS |
|
|
Sample Rate |
8kbps, 44.1kbps, 48kbps CODEC dependent |
|
|
Bit Rate |
CODEC dependent |
|
|
Streaming |
TBC |
|
|
Inputs |
Line in , microphone |
|
|
Outputs |
Line out, speaker |
|
|
Network |
Interface |
100-1000 Ethernet RJ45 |
|
Protocols |
IPv4, TCP, UDP, IGMP(Multicast), HTTP, RTSP, DNS |
|
|
Security |
None |
|
|
Configuration |
SDK, WEB |
|
|
Data |
Type |
2 Way UDP to serial support |
|
Interface |
RS-232 |
|
|
Protocol |
Clear |
|
|
Alarm |
n/a |
|
|
Sensor |
n/a |
|
|
Event |
Sources |
n/a |
|
Actions |
n/a |
|
|
Power |
Supply |
5v ±0.1v DC OR 12v ±0.1v DC camera dependent |
|
Adapter input volts |
N/A |
|
|
Adapter Output Voltage |
N/A |
|
|
Consumption |
13W Max (LVDS + USB / camera dependent) |
|
|
Recording |
Edge Storage |
32GB EMMC + USB OTG |
|
Temperature |
Operating Range |
-40C + 85C (Tested to MIL-STD-810G Standard) |
|
Physical |
Dimensions |
58.4 x 48.3 x 9.3cm |
|
Weight |
22g |
|
|
Housing |
PCB Only |
|
|
General |
Certifications |
RoHS |
|
Software |
IP Finder + Player (video decode and display) |
|
|
Warranty |
12 Months |
|
|
Remote |
N/A |
|
|
Reset |
Web interface or IP finder |
|
|
Control & Set Up |
Set Up |
Web interface or API |
|
Control |
Web interface or API |
|
|
Upgrade |
Firmware Upgrade via webpage or IP finder tool |
|
|
In the Box |
Contents |
PCB, Chosen Input Boards and Optional Leads |
|
Power Cable/adapter |
Cable available |
