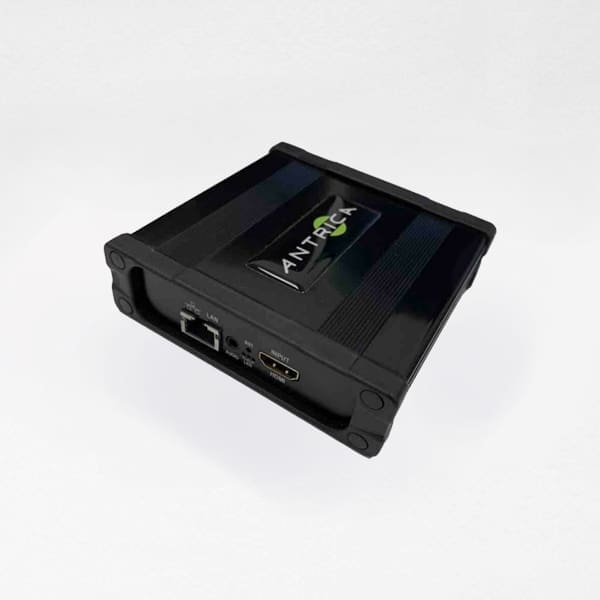

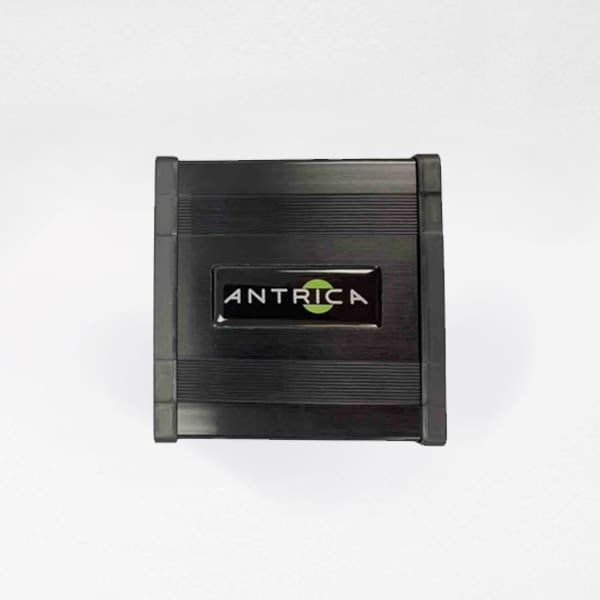

ANT-2400B HDMI 4KP30 H.265 VIDEO ENCODER

Product Code: ANT-2400B

ANT-2400B HDMI 4KP30 H.265 VIDEO ENCODER

Product Overview

The ANT-2400B is an H.265 or H.264 4KP30 1 x HDMI (or DVI with a cable adapter) video encoder. This encoder is best suited to applications requiring a lower cost encoder with H.265 low bit rate performance and where full ONVIF is not required.

The ANT-2400B supports a wide range of streaming protocols such as RTSP, RTMP, MPEG-TS, and uniquely HTTP. This encoder is powered via 12v DC, has a loop in and out through the HDMI and is cost-effective considering its powerful performance. This model gives 4K encoding at a low-cost affordable price.

Product video

Find out more about the ANT-2400B Mini 4K HDMI & DVI H.265 or H.264 HD UHD Video Encoder, including uses and tech specs.

The Key features of ANT-2400B

Learn more about the key features

4K High Resolution

3840 x 2160 P30 Max Resolution (4K / UHD)

h.265

H.265 or H.264 Encoder

hdmi

HDMI & DVI Inputs

multiple streams

Multiple Streaming Formats Supported

hd-sdi-decoder

Small size encoder

sdcard

Micro SD Card Edge Storage

The Key features of ANT-2400B

Learn more about the key features

4K High Resolution

3840 x 2160 P30 Max Resolution (4K / UHD)

h.265

H.265 or H.264 Encoder

hdmi

HDMI & DVI Inputs

multiple streams

Multiple Streaming Formats Supported

hd-sdi-decoder

Small size encoder

sdcard

Micro SD Card Edge Storage

ANT-2400B compatibility

Antrica products are compatible with a range of products

ANTRICA'S SPECIALIST INSIGHTS AND STEP-BY-STEP SUPPORT HELPED ME TO ENSURE I MADE THE CORRECT PRODUCT CHOICE FOR MY VIDEO ENCODING SOFTWARE. A VERY GOOD SERVICE!
Becca Pye - Chief Technology Officer
Antrica’s products have an excellent reputation and are reliable, we know they just work.
Antrica Customer
Antrica’s level of encoder/decoder knowledge is exceptional and we trust their advice on choosing a product to suit.
Antrica Customer
Previous slide
Next slide

What markets is this product suitable for?

The ANT-2400B Mini 4K HDMI & DVI H.265 or H.264 HD UHD Video Encoder is commonly used in the following markets and more.

WORLDWIDE SPECIALIST, MANUFACTURER & SUPPLIER OF VIDEO ENCODERS & VIDEO DECODERS

Antrica specialises in Video Encoders and Decoders, offers excellent service and technical support. We supply products worldwide directly or via our Global Distributors.

Discover our FREE no-obligation Loan Scheme where you can try one of our products.

product REviews

Love your Antrica product? then why not leave a review

Reviews

There are no reviews yet.

Be the first to review “ANT-2400B HDMI 4KP30 H.265 VIDEO ENCODER”

Your email address will not be published. Required fields are marked *

0 of 0 reviews

Sorry, no reviews match your current selections

Product information and support

Learn more about the ANT-2400B Mini 4K HDMI & DVI H.265 or H.264 HD UHD Video Encoder, including key features and tech specs.
  • 1 x HDMI or DVI
  • H.265 or H.264 HD Video Encoder
  • Up to 3840 x 2160 at 30 frames per sec encode (4K/UHD)
  • Dual streaming using an IP LAN ethernet connection
  • The HDMI input needs an external splitter for looping the signal
  • HTTP, RTSP, RTMP and MPEG-TS over UDP
  • Powered via 5V USB
  • AAC and MP3 audio
  • Embedded audio in HDMI
  • Small size encoder



System Mode Encoder
System Standards ONVIF (Not Profile S), RTSP, RTP, RTMP, HTTP, UDP, TCP
System Latency >150mS
Video Compression H.264 (MJPEG-4) / H.265 (HEVC)
Video Profile Baseline & High H264 plus HEVC
Video Frame Rate 5-60 fps (Max at UHD 3840×2160 is 30fps)
Video Bit Rate 16kbps-50 mbps
Video Mode GOP
Video Bit Rate Control CBR, VBR
Video Min Resolution 320 x 180
Video Max Resolution 3840 x 2160 (2560×1600, 2560×1440 , 2048×1152 , 1080 and 720P)
Video Number of Streams Primary 1 x H.265 & 1 Secondary H.265 or Primary 1 x H.264 & Secondary H.264
Video Inputs 1 x HDMI
Video Input Combinations Any 1 Input
Video Outputs N/A
Video Output Combinations N/A
Video On Screen Display English
Audio Mode Full Duplex Stereo
Audio Compression MP3 + AAC + G711
Audio Sample Rate G711 = 8Khz , AAC= 32/44.1/48kHz
Audio Bit Rate G711=64kbps, AAC= 64/128kb/256Kbs
Audio Streaming 1 Way Stereo
Audio Inputs Line In , HDMI Audio
Audio Outputs N/A
Network Interface 10-100 Ethernet RJ45
Network Protocols ONVIF (Not Profile S), RTSP, RTP, RTMP, HTTP, UDP, TCP
Network Security Password Protection, HTTP
Network Configuration SDK, API, HTTP
Data Type N/A
Data Interface N/A
Data Protocol N/A
Data Alarm N/A
Data Sensor N/A
Event Sources N/A
Event Actions N/A
Power Supply 12v (Compact Size)
Power Adapter input volts AC 110-240v
Power Adapter Output Voltage 12v DC
Power Consumption 5w
Recording Edge Storage Micro SD Card
Temperature Operating Range 0C to + 50C (storage temp -40C – +70C)
Physical Dimensions 112 x 110 x 33 mm
Physical Weight 300 grams
Physical Housing Black Aluminum
General Certifications CE , FCC, RoHS
General Software IP Finder + VMS
General Warranty 12 Months
General Remote N/A
General Reset Web or external
Control & Set Up Set Up Web Interface API Document
Control API + SDK
Upgrade Firmware Upgrade
In the Box Contents Encoder , 5v Power Supply, Country converters HDMI Audio Ethernet
Power Cable/adapter 1 of either UK/US/EU/China/Aus



A few of the applications are:

  • Encode a 4K monitor screen and send to a VMS for monitoring, recording and litigation purposes
  • Encode 4K video from a piece of medical equipment and send to remote consultant to oversee the procedure
  • Encode & decode 4K video using this encoder and SpotBox4K decoder
  • Applications using 4G where high-quality, high-resolution video streams are required
