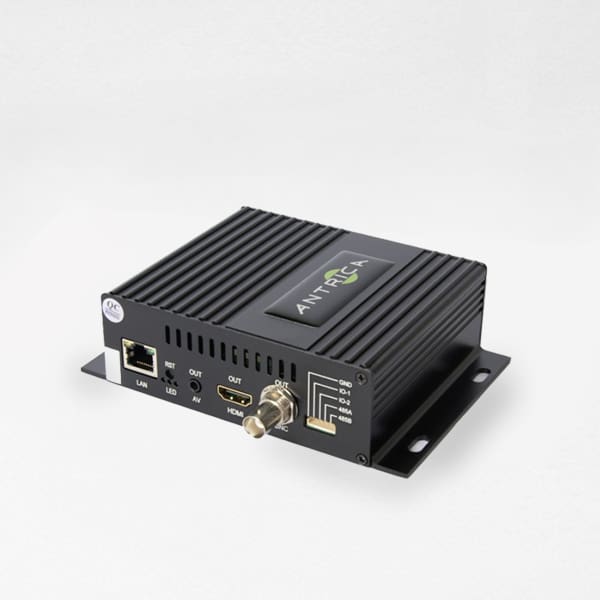

ANT-2601 AFFORDABLE HDMI/CVBS H.265 4KP30 DECODER

Product Code: ANT-2601

ANT-2601 AFFORDABLE HDMI/CVBS H.265 4KP30 DECODER

Product Overview

The ANT-2610 is an affordable H.265 or H.264 4K, HD or SD HDMI or CVBS/composite output (SD) video decoder. This decoder is a good choice for when you need a low-cost decoder that can display a single 4K stream and if latency is not an issue.

Product video

Learn more about video encoders and decoders with Carly Litwin.

The Key features of ANT-2601

Learn more about the key features

hd-sdi-decoder

4K, 3840 x 2160 P30, 8MP, UHD, HD or SD Decode + Display

h.265

H.264 & H.265 Decoder

hdmi

HDMI or Composite Output

temp

Temperature Operating Range 0 + 50C

Viewing

Ultra high resolution

decoding

Low Cost 4K Decoder

The Key features of ANT-2601

Learn more about the key features

hd-sdi-decoder

4K, 3840 x 2160 P30, 8MP, UHD, HD or SD Decode + Display

h.265

H.264 & H.265 Decoder

hdmi

HDMI or Composite Output

temp

Temperature Operating Range 0 + 50C

Viewing

Ultra high resolution

decoding

Low Cost 4K Decoder

ANT-2601 compatibility

Antrica products are compatible with a range of products

What markets is this product suitable for?

Discover a few of the markets the ANT-2601 HDMI & DVI H.265 + H.264 4KP30 Video Decoder is most commonly used in.

WORLDWIDE SPECIALIST, MANUFACTURER & SUPPLIER OF VIDEO ENCODERS & VIDEO DECODERS

Antrica specialises in Video Encoders and Decoders, offers excellent service and technical support. We supply products worldwide directly or via our Global Distributors.

Discover our FREE no-obligation Loan Scheme where you can try one of our products.
“We have successfully integrated Antrica decoders into various government applications, they are reliable and the technical assistance received from Antrica has been expectational”
Confidential Source
ANTRICA'S SPECIALIST INSIGHTS AND STEP-BY-STEP SUPPORT HELPED ME TO ENSURE I MADE THE CORRECT PRODUCT CHOICE FOR MY VIDEO ENCODING SOFTWARE. A VERY GOOD SERVICE!
Becca Pye - Chief Technology Officer
Antrica’s products have an excellent reputation and are reliable, we know they just work.
Antrica Customer
Previous slide
Next slide

Product information and support

Learn more about the ANT-2601 HDMI & DVI H.265 + H.264 4KP30 Video Decoder, including key features and tech specs.
  • 1 x HDMI or DVI
  • H.265 or H.264 HD Video Decoder
  • Up to 3840 x 2160 at 30 frames per sec encode
  • Dual streaming using an IP LAN ethernet connection
  • HDMI or DVI output
  • HTTP, RTSP, RTMP and MPEG-TS over UDP
  • Powered via 12V adapter (supplied)
  • AAC, G711 and MP3 audio
  • Embedded audio in HDMI
  • Auto reboot into a specific view is available and fail-safe reboot after a power cut



SystemModeEncoder
SystemStandardsONVIF Discovery, RTSP, RTMP,HTTP, MPEG-TS
SystemLatency>150mS (system dependant)
VideoCompressionH.264
VideoProfileBase, Main or High
VideoFrame Rate1-60 fps
VideoBit Rate16-12 mbps
VideoModeGOP
VideoBit Rate ControlCBR, VBR
VideoMin Resolution320 x 180
VideoMax Resolution1920 x 1080
Video
ANT-2601
ModeDecoder
StandardsRTSP HTTP MPEG-TS RTMP HLS
Latency>150mS (system dependant)
CompressionH.264 or H.265
ProfileBaseline & High
Frame Rate1-30 fps
Bit Rate32-10 mbps
ModeGOP
Bit Rate ControlCBR, VBR
Min Resolution352 x 240
Max Resolution3840 x 2160 P30
Number of Streams1 stream output
InputsN/A
Input CombinationsN/A
Outputs1 x HDMI 1.3 (DVI) + Composite
Output CombinationsHDMI 1.3 Output OR Composite BNC
On Screen DisplayEnglish
ModeSimplex Stereo
CompressionG.711 + AAC + MP3
Sample RateG711 = 8Khz , AAC= 32/44.1kHz MP3 = 32/44.1kHz
Bit RateG711=64kbps, AAC= 24-256kb/s MP3 = 24-256kb/s
Streaming1 Way Stereo
InputsN/A
OutputsEmbedded Audio + analogue
Interface10-100 Ethernet RJ45
ProtocolsIPv4, TCP, UDP,  DHCP,HTTP,RTSP,DNS,
SecurityPassword Protection
ConfigurationSDK, WEB
TypeN/A
InterfaceN/A
ProtocolN/A
AlarmN/A
SensorN/A
SourcesN/A
ActionsN/A
Supply12v
Adapter input voltsAC 110-240v
Adapter Output Voltage12v DC
Consumption5w
Edge StorageN/A
Operating Range0 + 50C
Dimensions116 x 116 x 30mm
Weight231g
HousingAnodised aluminium
CertificationsCE , FCC, RoHS
SoftwareN/A
Warranty12 Months
Remote
Resetweb
Set UpWeb Interface API Document
ControlWeb
UpgradeFirmware Upgrade
ContentsDecoder, 12v Power adapter HDMI lead
Power Cable/adapter UK/US/EU/China/Aus

A few of the applications are:

  • Low Cost 4K Decoder
  • Integrate Composite input (IP) into DVR
  • Auto reboot into a specific view is available and fail-safe reboot after a power cut. No OS to manage or keyboard and mouse or licence per camera all included.

This product is not limited to the markets and applications described.
