***COMING SOON***

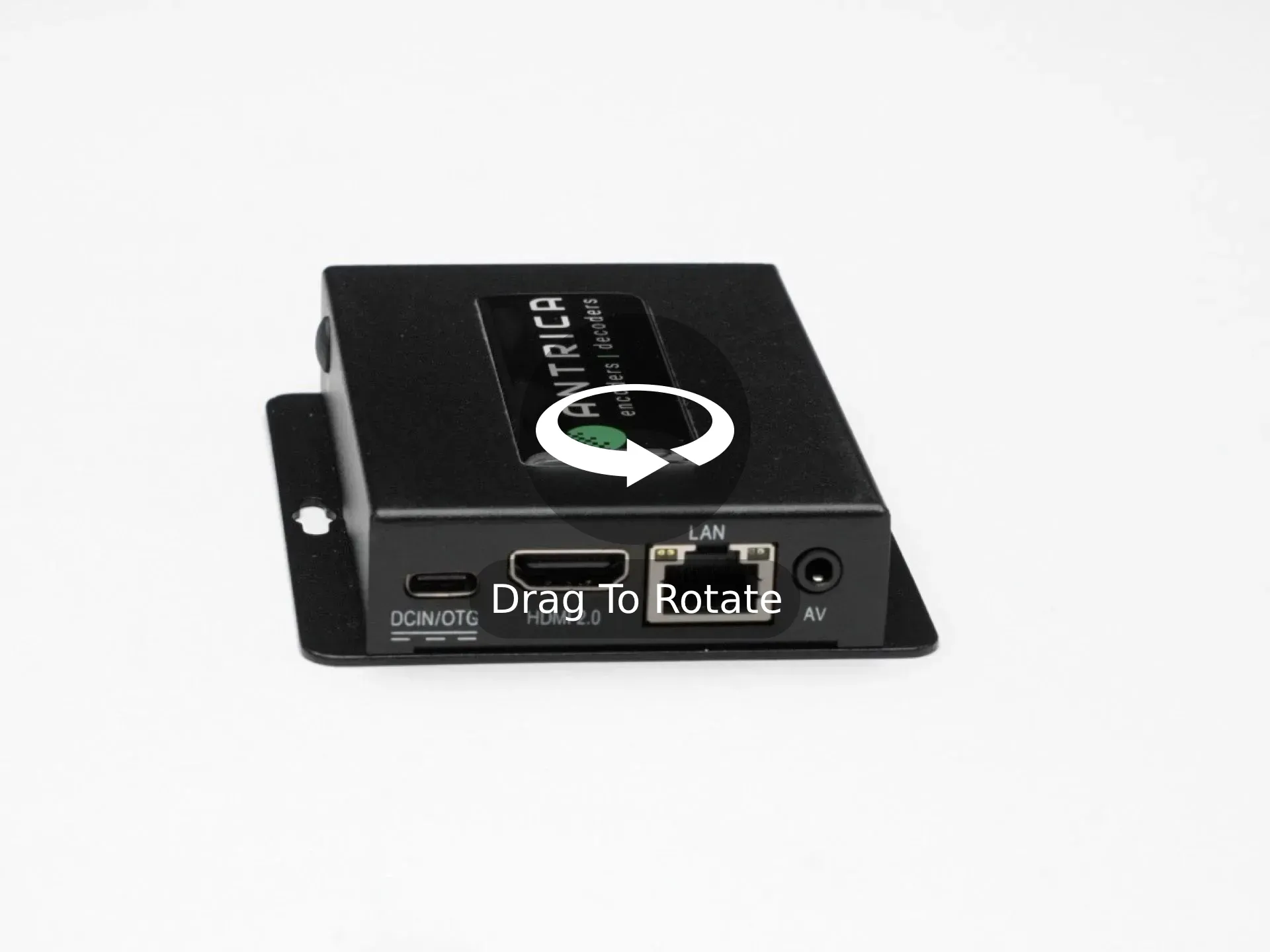

ANT-37500D is a Dual mode Low Cost Low Power Video Decoder supporting Dante AV-H or RTSP ONVIF and other stream formats. In Dante mode the decoder can be initially setup via the web interface and then fully controlled via Audinates Dante Controller and associated tools/API’s. In alternative mode the decoder can be used to display up to 16 RTSP MPEG-TS or ONVIF video streams in 1×1 , 2×2, 3×3 or 4×4 modes. Powered by USB-C the decoder has a USB-C / Ethernet PoE cable in the box for full PoE applications. The 37500D is the latest decoder product in the ‘SpotBox’ line up and includes new features such as a smaller metal housing with mounting fins and holes pre drilled, PoE options, and USB C power enabling the user to power the box from the monitor. It is a low cost, PC-Less way to view and display Dante AV-H streams up to 4K or Ip camera streams. Future Firmware releases will allow the mixing of Dante and standard streams for PiP quad and other display modes.
An IR remote control is supplied to allow view modes in RTSP ONVIF mode whilst in Dante mode the Video Decoder is fully controlled by the Dante Controller and associated tools/API’s.
A feature of the ANT-37500D is the rebroadcast of whatever the screen is displaying. This allows other decoders to clone whatever is being shown on the Dante AV-H Decoder HDMI output by receiving a re broadcast RTSP stream from the master Dante Decoder box.
A full SDK is available for control of multiple boxes and a web interface for setup and firmware upgrades. Firmware is being updated constantly to give more features and capabilities to the ANT-37500 series . As the AV-H capabilities develop the ANT-37500D firmware will be updated to allow new features.
Learn more about the key features
Learn more about the key features
Antrica products are compatible with a range of products
Viewing / Display Modes
1. Full Screen Mode – up to 4K resolution. In this mode 1 camera will display in full screen mode, you can then programme up to 100+ cameras which will cycle through one after another. One the cameras have been cycled through the view will return to the beginning.
2. Quad Screen Mode – display 4 x 1080P60 streams on a 4K monitor. You can programme up to 100+ cameras to display and view them in quad mode (4 cameras on screen) – after this it can be programmed to switch to another quad screen of cameras (a different set of 4 cameras on screen).
3. 9 Camera Display Mode – Display 9 x cameras on a monitor (resolution scaled to monitor used). You can programme up to 100+ cameras to display and view them in 9 camera display mode (3×3) – after this it can be programmed to switch to another view of 9 cameras (a different set of 9 cameras on screen).
4. 16 Camera Display Mode – Display 16 x cameras on a monitor (resolution scaled to monitor used). You can programme up to 100+ cameras to display and view them in 16 camera display mode (4×4) – after this it can be programmed to switch to another view of 9 cameras (a different set of 9 cameras on screen).
| Main | Sub | Specification / Detail |
| System | Mode | Dante Integrated Decoder |
| System | Standards | ONVIF Discovery, RTSP,HTTP, MPEG-TS |
| System | Latency | >150mS (system dependant) |
| Video | Compression | H.264 or H.265 |
| Video | Profile | Baseline & High |
| Video | Frame Rate | 1-30 fps |
| Video | Bit Rate | 32kbps-10 mbps |
| Video | Mode | GOP |
| Video | Bit Rate Control | CBR, VBR |
| Video | Min Resolution | 352 x 240 P30 |
| Video | Max Resolution | 3840 x 2160 P30 |
| Video | Number of Streams | 4×4 (16) @480P 3×3 (9) @720P 2×2 (4) @1080P or 1 x 3840 x 2160 P30 Single Mode |
| Video | Inputs | N/A |
| Video | Input Combinations | N/A |
| Video | Outputs | 1 x HDMI 2.0 |
| Video | Output Combinations | HDMI 2.0 Output |
| Video | On Screen Display | English |
| Audio | Mode | Via HDMI (AAC) |
| Audio | Compression | N/A |
| Audio | Sample Rate | N/A |
| Audio | Bit Rate | N/A |
| Audio | Streaming | N/A |
| Audio | Inputs | N/A |
| Audio | Outputs | N/A |
| Network | Interface | 100/1G Ethernet RJ45 |
| Network | Protocols | IPv4, TCP, UDP, IGMP(Multicast), DHCP,HTTP,RTSP,DNS, NTP |
| Network | Security | Password Protection |
| Network | Configuration | SDK, WEB |
| Data | Type | N/A |
| Data | Interface | N/A |
| Data | Protocol | N/A |
| Data | Alarm | N/A |
| Data | Sensor | N/A |
| Event | Sources | N/A |
| Event | Actions | N/A |
| Power | Supply | 5v DC / 5v USB C / PoE adapter (optional extra) |
| Power | Adapter input volts | AC 110-240v |
| Power | Adapter Output Voltage | 5v |
| Power | Consumption | <10w |
| Recording | Edge Storage | N/A |
| Temperature | Operating Range | 0 + 50C |
| Physical | Dimensions | L = 94mm x D = 21mm x W = 82mm |
| Physical | Weight | 210g |
| Physical | Housing | Black Metal – Aluminum |
| General | Certifications | CE , FCC, RoHS |
| General | Software | SDK |
| General | Warranty | 12 Months |
| General | Remote | IR Remote |
| General | Reset | Web or Physical Restart Button |
| Control & Set Up | Set Up | Web Interface API Document, Dante Controller and associated tools/API’s |
| Control | IR Remote Control or Web Interface | |
| Upgrade | Firmware Upgrade via Web Interface | |
| In the Box | Contents | ANT-37500D unit , 5v Power Supply, USB A – USB C Lead, PoE Adapter (optional), Remote |
| Power Cable/adapter | 5v Power supply with USB Cable |
A few of the applications are:
This product is not limited to the markets and applications.
