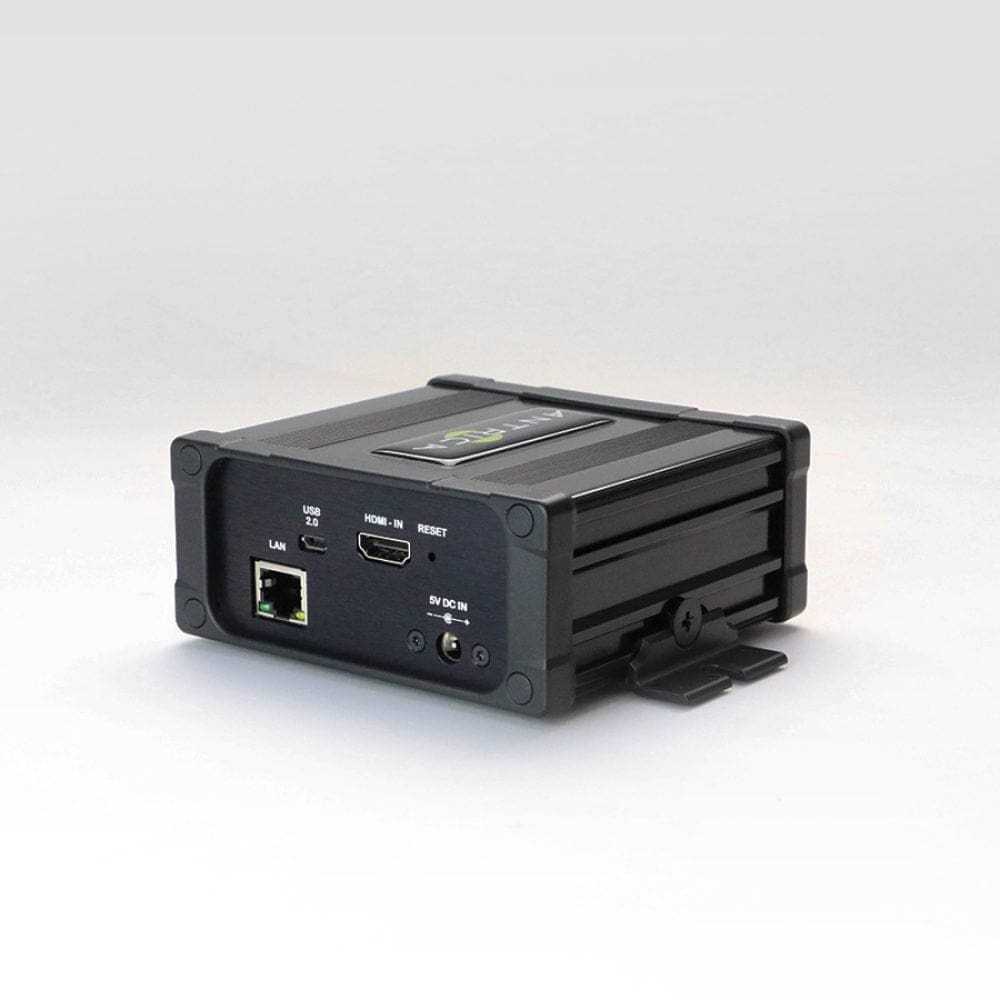

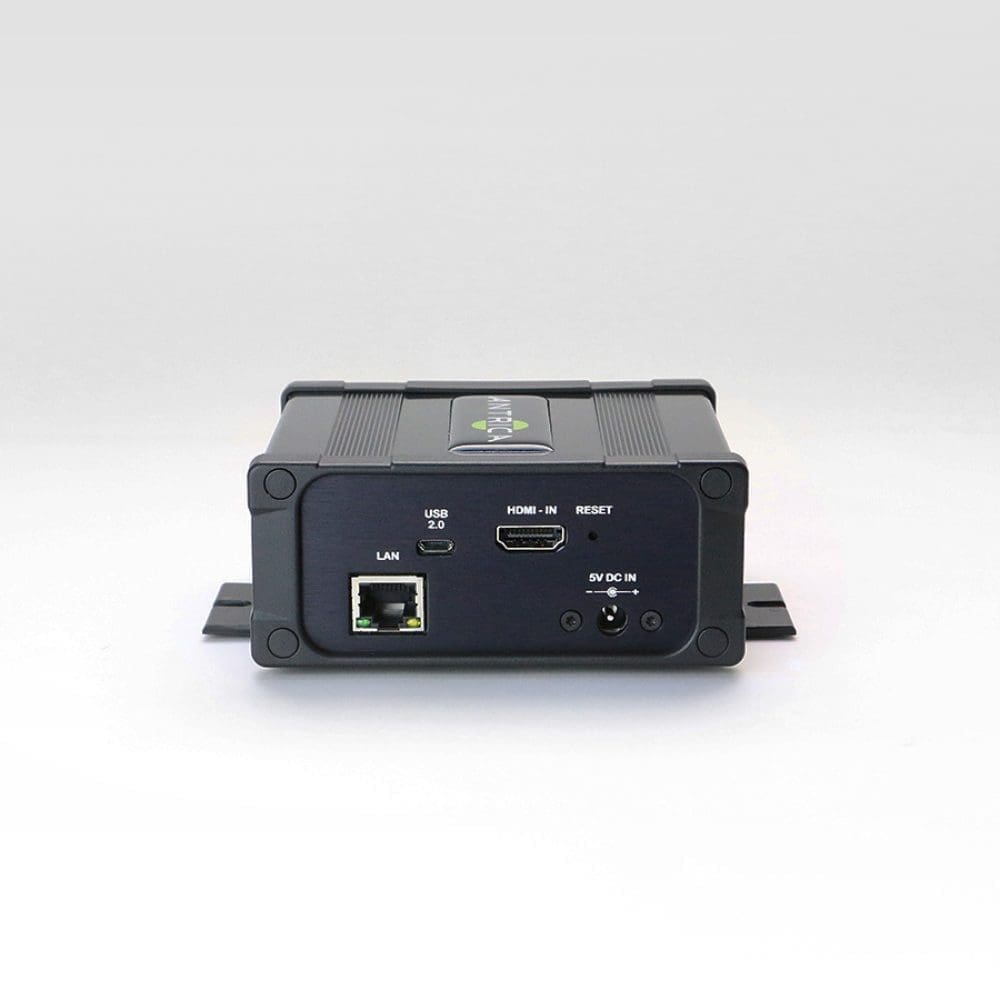

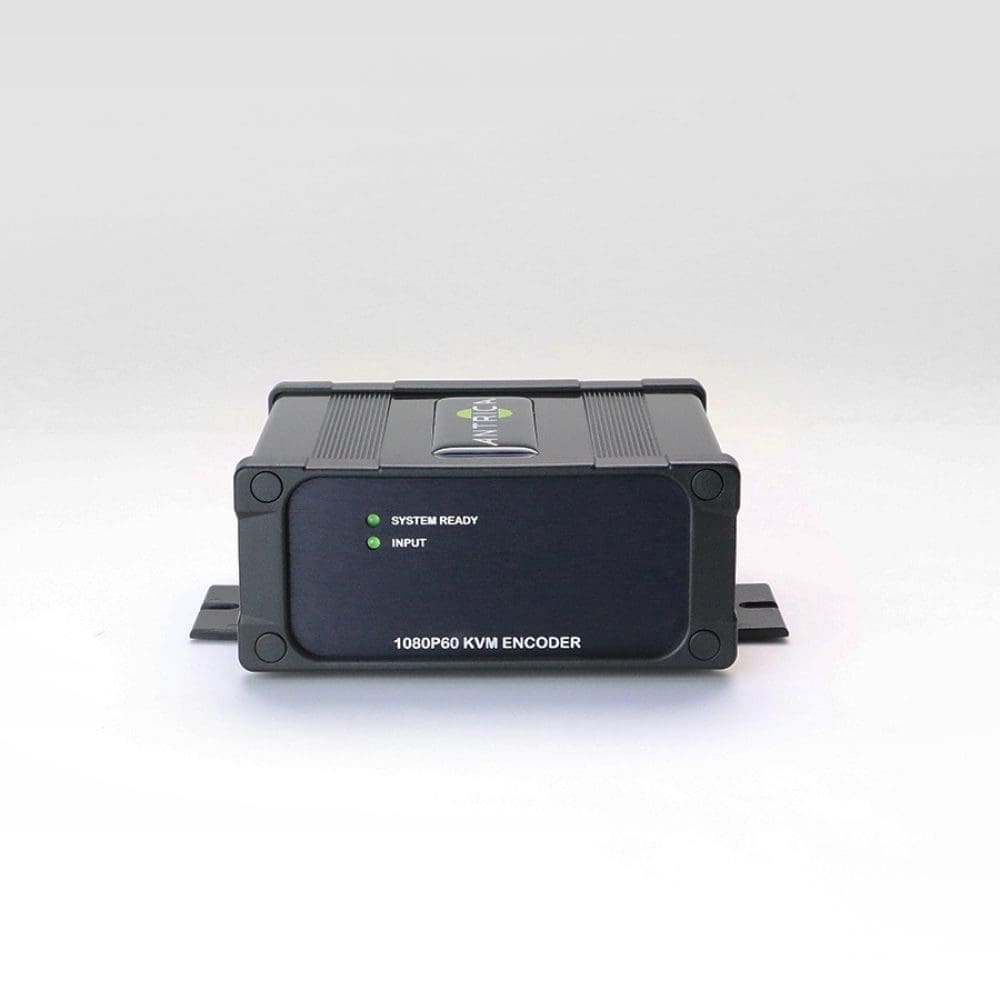

ANT-73000 KVM Over IP HDMI & DVI Input H.264 HD 1080P60 Video Encoder

Product Code: ANT-73000

ANT-73000 KVM Over IP HDMI & DVI Input H.264 HD 1080P60 Video Encoder

Product Overview

This product has been discontinued – please click HERE to navigate to the latest product.

ANT-73000 KVM Over IP HDMI & DVI Input H.264 HD 1080P60 Video Encoder, capable of up to a maximum 1920 x 1080 at 60 frames per sec encode with single stream streaming using an IP LAN ethernet connection.

The inputs are HDMI & DVI with the capability of controlling a remote PC’s KVM using a piece of software provided. The inputs and outputs are provided to allow for signal bypassing or looping.

The ANT-73000 KVM encoder is supplied with a free PC based application that runs on the Local PC/Laptop where you will view the ‘Remote PC’ stream using VLC player. The PC application when enabled allows the Local machine to take control of the remote machines keyboard and mouse.

Multiple streaming formats are supported such as IPv4, TCP, UDP, HTTP, RTP,RTSP, Telnet Streams Supported.

The encoder can be powered via 12V or USB, as well as also controlling the Remote PC/Laptop keyboard and mouse using this USB port.

44.1 and 48KHz audio is supported with embedded audio HDMI supported.

There is no RS232/485/422 2 way serial data communication, motion detection , sensor and alarm I/O for this product – please refer to other products for these features.

Rack mountable with 1U rack mount kit available supporting up to 3 encoders.

Product information and support

Explore below for support and information about the ANT-73000 video encoder.
  • HDMI & DVI Inputs (USB?)
  • KVM Over IP H.264 HD Video Encoder
  • Up to 1920 x 1080 at 60 frames per sec encode
  • Single streaming using an IP LAN ethernet connection
  • Inputs are HDMI & DVI
  • Control a PC Keyboard, Video & Mouse Over IP / Network
  • The inputs and outputs allow for signal bypassing or looping
  • IPv4, TCP, UDP, HTTP, RTP,RTSP, Telnet Streams Supported
  • Powered via 12V or USB.
  • USB connection used to control KVM
  • 44.1 and 48KHz audio supported
  • Embedded audio in HDMI
  • Rack mountable


System Mode Encoder
System Standards RTSP Low Latency
System Latency <150mS (system dependant)
Video Compression H.264
Video Profile Baseline
Video Frame Rate 1- 60fps
Video Bit Rate 32-25 mbps
Video Mode GOP , Rand & Contra Refresh
Video Bit Rate Control CBR, VBR
Video Min Resolution 640 x 480
Video Max Resolution 1920 x 1080
Video Number of Streams Primary 1 x H.264
Video Inputs 1 x HDMI (DVI)
Video Input Combinations Any 1 Input
Video Outputs N/A
Video Output Combinations N/A
Video On Screen Display English
Audio Mode Simplex Stereo
Audio Compression 2 Channel PCM, DTS 5.1, AC3 5.1
Audio Sample Rate 44.1/48kHz
Audio Bit Rate 16bit ADC
Audio Streaming 1 Way Stereo
Audio Inputs Embedded HDMI Audio
Audio Outputs N/A
Network Interface 10-100 Ethernet RJ45
Network Protocols IPv4, TCP, UDP, IGMP(Multicast),HTTP,RTSP,DNS
Network Security Password Protection
Network Configuration SDK, WEB
Data Type N/A
Data Interface N/A
Data Protocol N/A
Data Alarm N/A
Data Sensor N/A
Event Sources N/A
Event Actions N/A
Power Supply 5v USB External
Power Adapter input volts AC 110-240v
Power Adapter Output Voltage 5v DC USB
Power Consumption 5w
Recording Edge Storage N/A
Temperature Operating Range 0c – 70c
Physical Dimensions 110 x 96 x 45mm
Physical Weight 320g
Physical Housing Black Aluminum
General Certifications CE , FCC, RoHS
General Software KVM Software
General Warranty 12 Months
General Remote N/A
General Reset Web or external
Control & Set Up Set Up Web Interface
Control Keyboard & Mouse (not included)
Upgrade Firmware Upgrade
In the Box Contents Encoder , 12v Power Supply & Lead & Fixing Kit
Power Cable/adapter 1 of either UK/US/EU/China/Aus


A few of the applications are:

  • Encode a PC screen and control the keyboard, video and mouse remotely.
  • Encode

This product is not limited to the markets and applications described.
