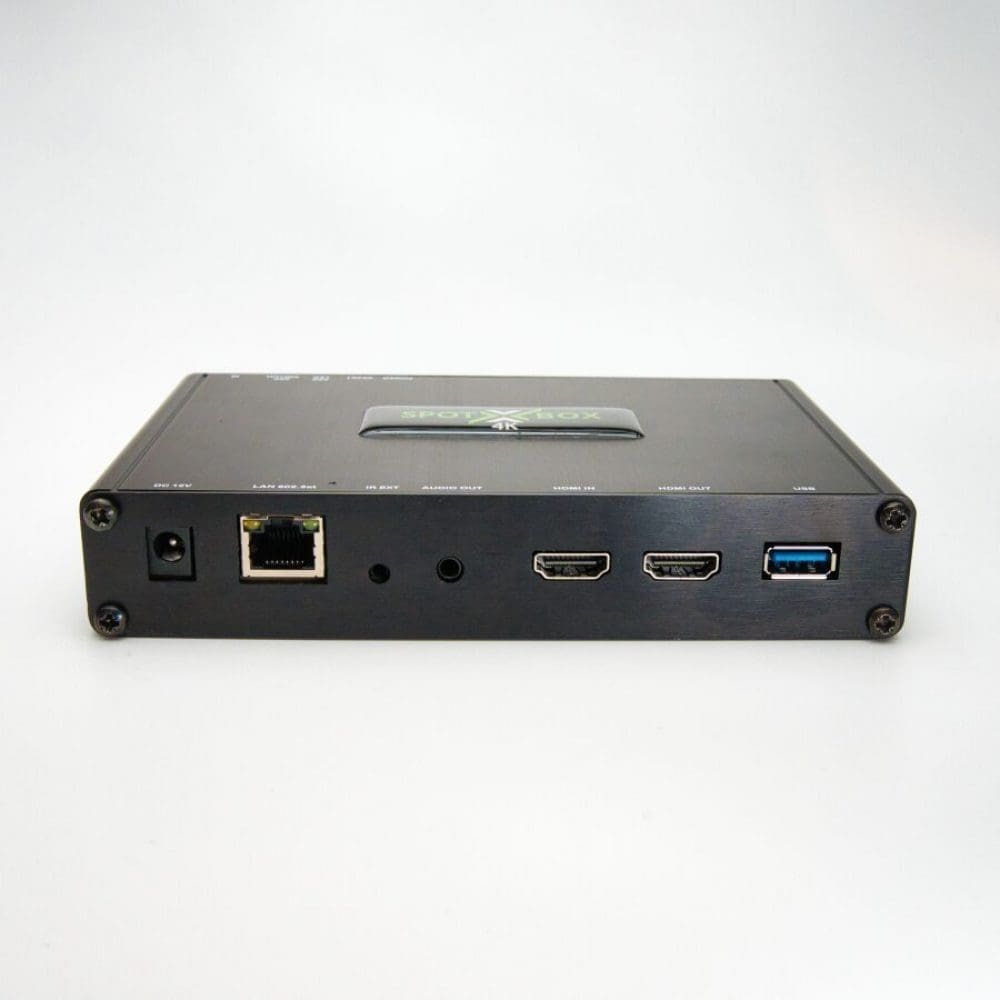

ANT-37100 4K HDMI H.265 UNIVERSAL MULTI-VIEWER DECODER

• Application Notes
• Firmware
• Product Specification
• Quick Start Guide
• Software
• User Manual
• SDK
• Encoder Catalogues

• HDMI Connection to Monitor/TV
• ONVIF Compatible H.264 & H.265 4K HD Video Decoder
• Up to 4K, UHD, 8MP 3840 x 2160 single decode over V1.4B HDMI
• Multiple stream decode – Up to 16 simultaneously (resolutions vary depending on # decoded)
• Network Connection using IP LAN ethernet connection
• Multiple streaming formats are supported such as Up to 100+ URL’s, MPEG-TS, ONVIF & RTSP Streams Supported.
• The decoder is powered via 12V D/C power converter supplied with multi country connectors or can be powered by USB C or PoE as a separate adapter / cable.
• ONVIF auto-discovery of cameras or manual entry of RTSP URLs makes this box very easy to program as it finds all ONVIF cameras on a network. The box can also automatically select the best ONVIF profile for a particular view. This ensures you get best possible clarity in each view.
• Control of views and selection of an individual camera is done via the IR remote control or this can be programmed as a sequence.
• Auto reboot into a specific view is available and fail safe reboot after power cut. No OS to manage or keyboard and mouse or licence per camera – included
• Metal Enclosure with mounting fins and holes
• Low Cost, Easy To Use Product
• NO PC or VMS Required
• Up to 16 URL’s, MPEG-TS & RTSP Streams Supported
• Powered via 12V with US UK EU and China/Australia power adapter units in box
• IR remote control supplied for switching of views
• IR extender cable
• A full SDK is available for control of multiple boxes and a web interface for setup and firmware upgrades
• A single view can decode 3840×2160 P30 or 1920x1080P60 and these can be automatically switched for up to 100+ cameras.
• Available viewing modes of full screen, quad view 9 view and 16 view on either a 4K or 1080P monitor. In 4K display mode all cameras are displayed in their native resolution, no scaling.

Viewing / Display Modes

1. Full Screen Mode – up to 4K resolution. In this mode 1 camera will display in full screen mode, you can then programme up to 100+ cameras which will cycle through one after another. One the cameras have been cycled through the view will return to the beginning.

2. Quad Screen Mode – display 4 x 1080P60 streams on a 4K monitor. You can programme up to 100+ cameras to display and view them in quad mode (4 cameras on screen) – after this it can be programmed to switch to another quad screen of cameras (a different set of 4 cameras on screen).

3. 9 Camera Display Mode – Display 9 x cameras on a monitor (resolution scaled to monitor used). You can programme up to 100+ cameras to display and view them in 9 camera display mode (3×3) – after this it can be programmed to switch to another view of 9 cameras (a different set of 9 cameras on screen).

4. 16 Camera Display Mode – Display 16 x cameras on a monitor (resolution scaled to monitor used). You can programme up to 100+ cameras to display and view them in 16 camera display mode (4×4) – after this it can be programmed to switch to another view of 9 cameras (a different set of 9 cameras on screen)

A few of the applications are:

• Connect to a monitor as an easy / simple add on to an existing security set up – for additional viewing desks etc
• Use in place of NVR / DVR / VMS as a way of viewing cameras, and utilising edge recording on the IP cameras.
• In residential properties the box can be connected to existing TV as additional source / input to view residential / business ip security cameras.

This product is not limited to the markets and applications.
